Aluminum Mesh

Micro aluminum expanded mesh

Micro aluminum expanded mesh is made of aluminum or aluminum-magnesium alloy plate stretching, in its production process does not produce any waste, the expanded metal mesh is soft with no rust,
Product description: Our company adopts high-end punching machine to produce aluminum foil mesh with thickness between 0.04-0.2mm, which can meet the product requirements of high-end industries. And the aluminum foil stre
INQUIRY

Aluminum sheet mesh aperture can be divided into: 0.3x0.6mm, 0.4x0.8mm, 0.5x1mm, 1x2mm, 1.25x2.5mm, 1.5x2.5mm, 1.6x3.2mm, 2x3mm, 3x4mm, 3*5mm, 3*6mm, 4*8mm, 5*10mm, 6*12mm, 8*16mm, 10* 20mm, 12*25mm, 15*30mm, etc.

The common thickness of aluminum sheet mesh: 0.05mm, 0.1mm, 0.15mm, 0.2mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm, 0.55mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1mm, etc.

Use: Micro aluminum expanded mesh is mostly used for electrodes of new energy batteries to the grid, and gas filtration of large equipment, etc.

Product Details

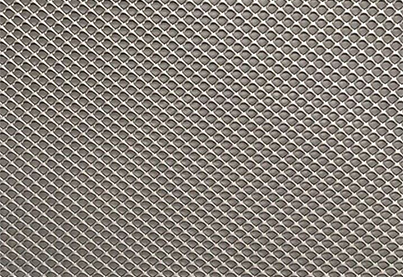

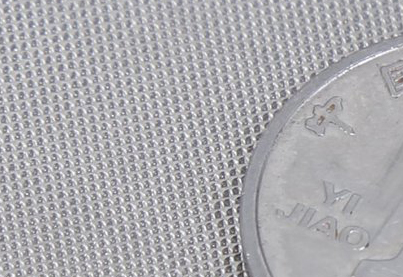

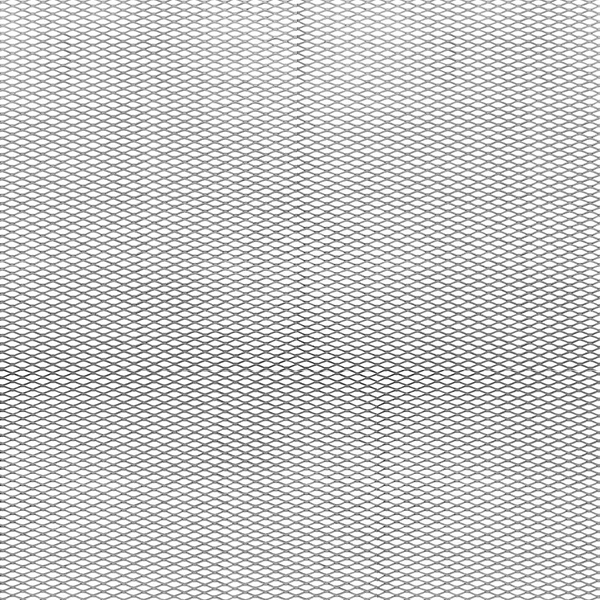

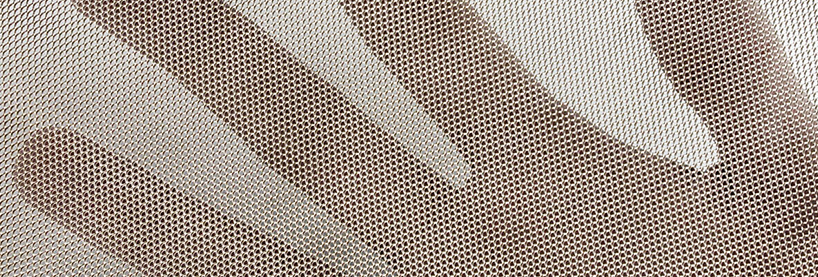

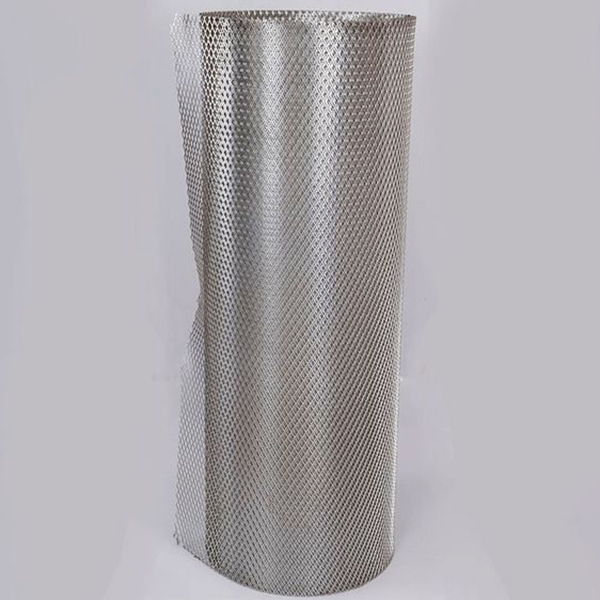

Micro aluminum expanded mesh

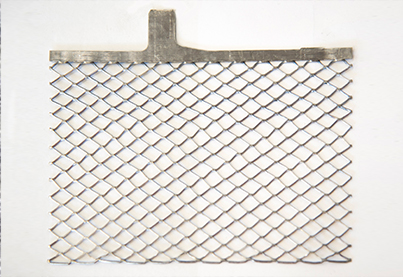

Aluminum sheet mesh for battery skeleton mesh	Aluminum panel mesh

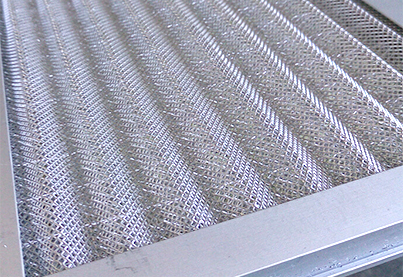

Aluminum expanded mesh filter for air conditioner filtration	Aluminum foil mesh for lithium ion rechargeable batterie
